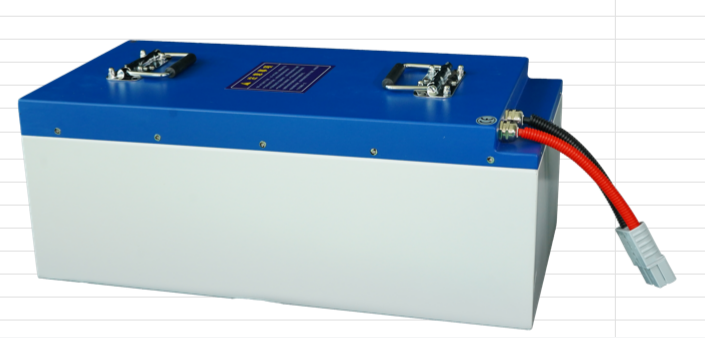

60V100AH LiFePO4 battery

NameSpecificationModel 60V100AHBattery typeLiFePO4Normal capacity102AhMin capaci
Send Inquiry

Products Description


NameSpecification
Model 60V100AH
Battery typeLiFePO4
Normal capacity102Ah
Min capacity100Ah
Battery pack type20S1P
Normal Voltage64V
Energy6400WH
Storage ambient temperature-20℃ ~ +65℃
Operating ambient temperaturecharging：   0℃  ~ +55℃ discharging：-20℃ ~   +65℃
Optimum Operating relative humidity≤95%
SOC working range0% ~ 100%
Maximum discharge sustainable current100A
Short-time Peak discharging current200A
PACK design cycle life2000   @70%SOH
Thermal management modenatural   heat dissipation
IP degreebattery   box IP65
Battery gross weight （KG）47
Dimension540*280*210mm
PACK shell materialmetal plate /Steel case
Short Circuit ProtectionAuto recover or charge release
BMS FunctionsLow voltage ,high voltae,over temp ,over current,short-circuit protection,  passive balance function,etc.
 Erickshaw，Eletric motor battery,Tricycle Battery, golf cart battery,we can provide OEM, ODM customized services
ItemModelCELL ASSCellBMS（A）Dimension（mm）
LengthWidthHigh
148V15AH16S1PLiFePO420A170155182
248V20AH16S1PLiFePO430A175145225
348V30AH16S1PLiFePO430A185155260
448V50AH16S1PLiFePO450A220170300
548V105AH16S1PLiFePO460A


648V200AH16S1PLiFePO4100A


748V250AH16S1PLiFePO4100A


860V20AH20S1PLiFePO430A215190170
960V30AH20S1PLiFePO440A185165315
1060V52AH20S1PLiFePO460A248165345
1160V67AH20S1PLiFePO460A440220170
1260V87AH20S1PLiFePO4100A450260220
1360V100AH20S1PLiFePO4100A550280210
1460V150AH20S1PLiFePO4200A550330250
1560V200AH20S1PLiFePO4200A600420260
1660V250AH20S1PLiFePO4200A


1772V20AH24S1PLiFePO440A215200175
1872V30AH24S1PLiFePO440A215165315
1972V50AH24S1PLiFePO460A248165370
2072V67AH24S1PLiFePO460A460260170
2172V87AH24S1PLiFePO4100A450280220
2272V100AH24S1PLiFePO4120A550300210
2372V150AH24S1PLiFePO4120A550330260
