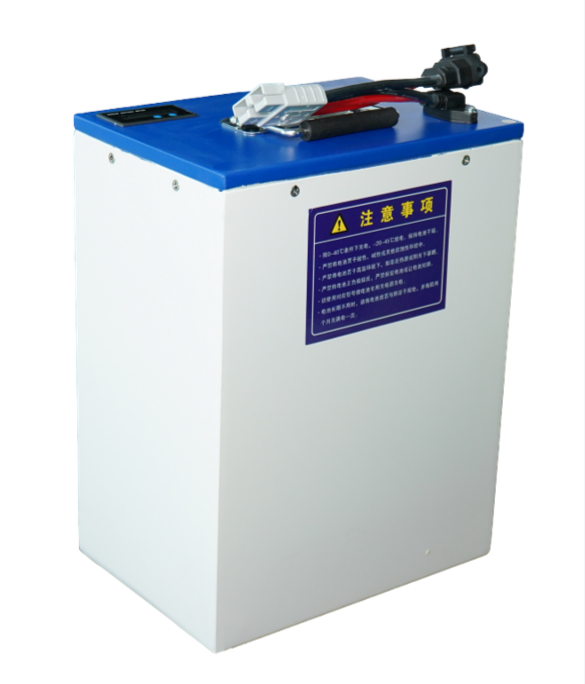

72V30AH LiFePo4 battery

ItemSpecificationModel 72V30AHBattery typeLiFePO4Normal capacity30AhMin capacity
Send Inquiry

Products Description



ItemSpecification
Model 72V30AH
Battery typeLiFePO4
Normal capacity30Ah
Min capacity29Ah
Battery pack type24S2P
Normal Voltage76.8V
Energy2304WH
Storage ambient temperature-20℃ ~ +65℃
Operating ambient temperaturecharging: 0℃  ~ +55℃ discharging:-20℃ ~ +65℃
Optimum Operating relative humidity≤95%
SOC working range0%   ~ 100%
Maximum discharge sustainable current40A
Short-time Peak discharging current70A
PACK design cycle life2000   @70%SOH
Thermal management modenatural   heat dissipation
IP degreebattery   box IP65
Battery gross weight (KG)17
Dimension220*165*315mm
PACK shell materialmetal   plate /Steel case
Short Circuit ProtectionAuto   recover or charge release
BMS FunctionsLow   voltage ,high voltae,over temp ,over current,short-circuit protection,   passive balance function,etc.
 Erickshaw,Eletric motor battery,Ebike battery,Tricycle Battery,golf cart battery,we can provide   OEM, ODM customized services
ItemModelCELL ASSCellBMS(A)Dimension(mm)
LengthWidthHigh
148V15AH16S1PLiFePO420A170155182
248V20AH16S1PLiFePO430A175145225
348V30AH16S1PLiFePO430A185155260
448V50AH16S1PLiFePO450A220170300
548V105AH16S1PLiFePO460A


648V200AH16S1PLiFePO4100A


748V250AH16S1PLiFePO4100A


860V20AH20S1PLiFePO430A215190170
960V30AH20S1PLiFePO440A185165315
1060V52AH20S1PLiFePO460A248165345
1160V67AH20S1PLiFePO460A440220170
1260V87AH20S1PLiFePO4100A450260220
1360V100AH20S1PLiFePO4100A550280210
1460V150AH20S1PLiFePO4200A550330250
1560V200AH20S1PLiFePO4200A600420260
1660V250AH20S1PLiFePO4200A


1772V20AH24S1PLiFePO440A215200175
1872V30AH24S1PLiFePO440A215165315
1972V50AH24S1PLiFePO460A248165370
2072V67AH24S1PLiFePO460A460260170
2172V87AH24S1PLiFePO4100A450280220
2272V100AH24S1PLiFePO4120A550300210
2372V150AH24S1PLiFePO4120A550330260
