Products Description

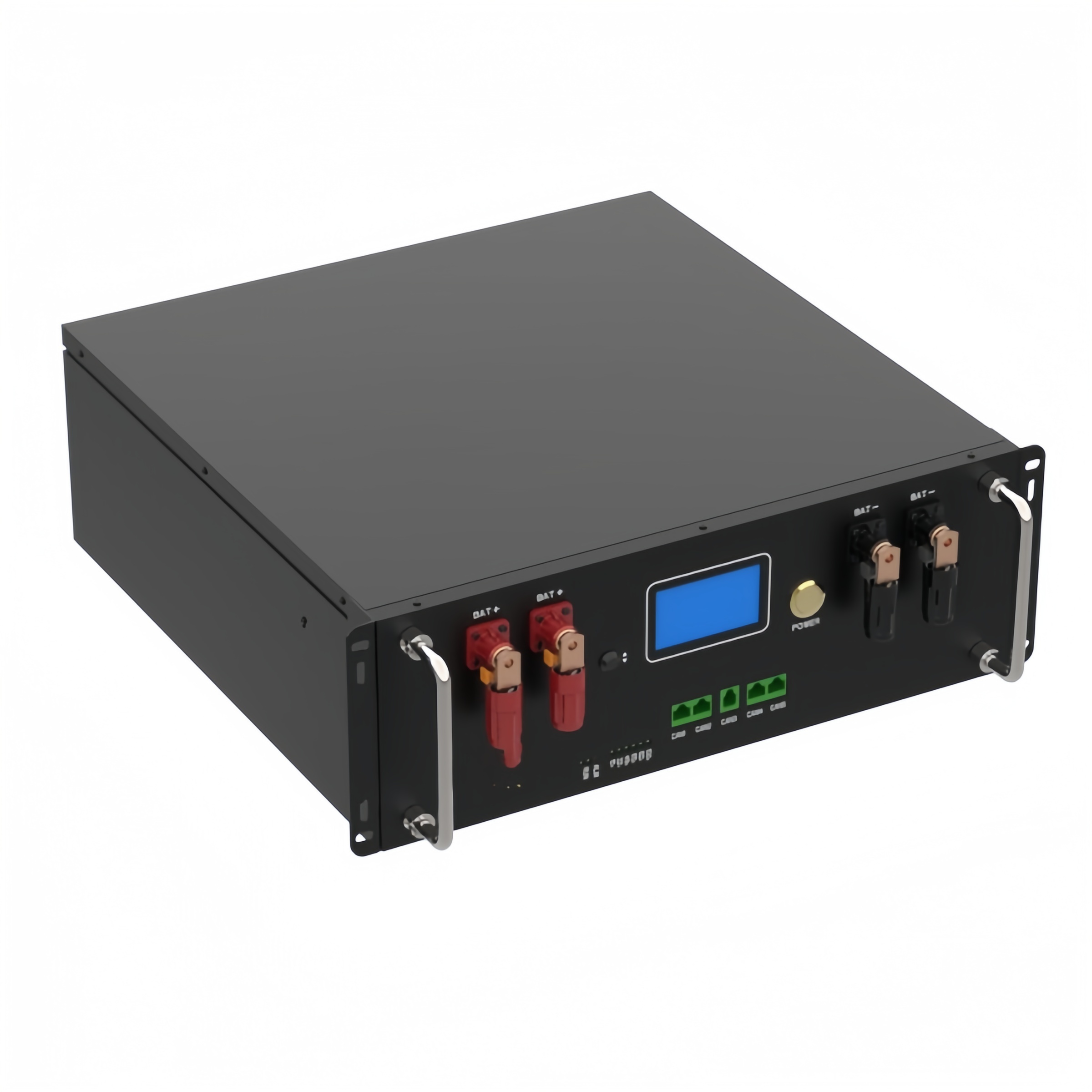

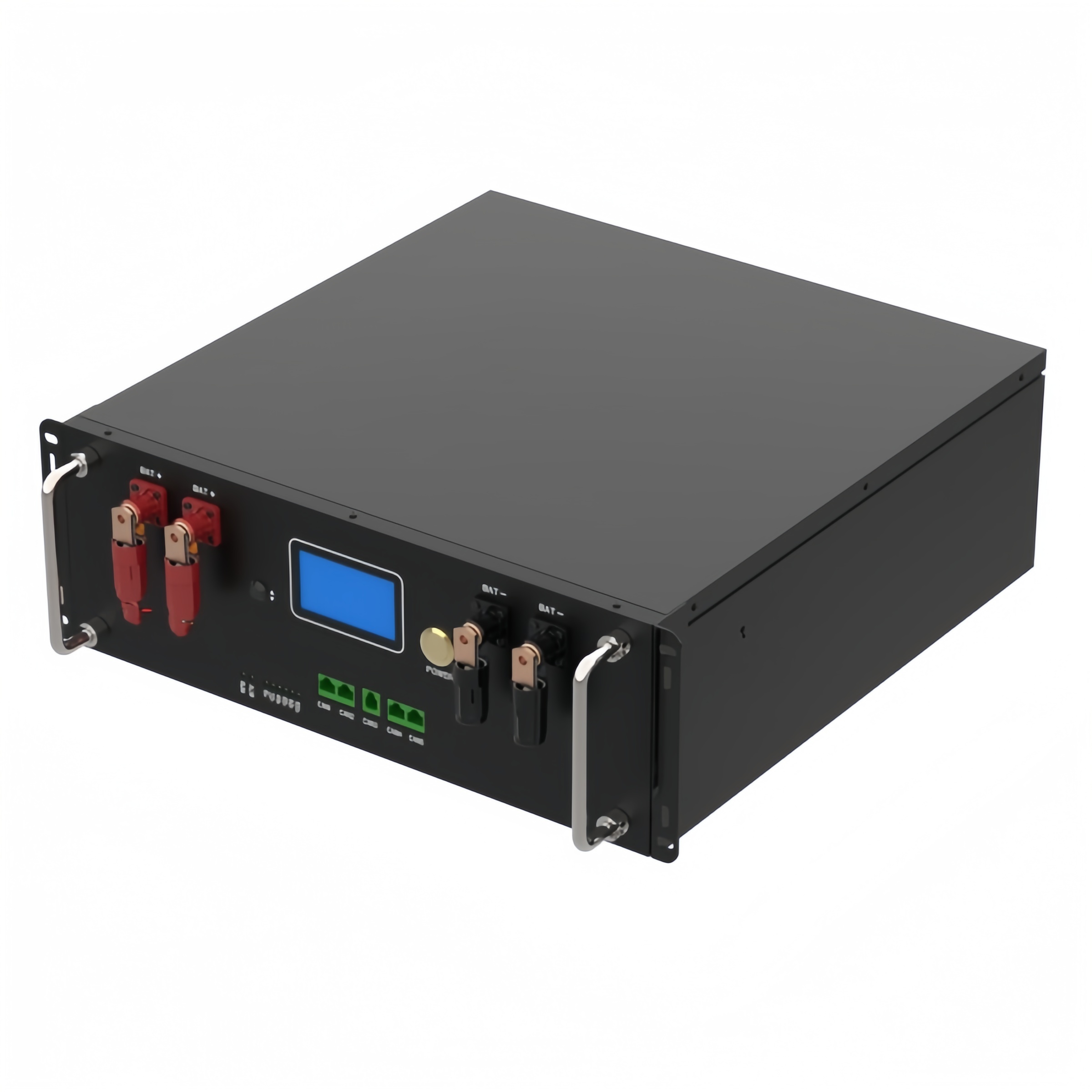

Rack Mount Energy Storage Battery 48V 200Ah Lifepo4 Battery Feature
1. Long lifespan time with 6000 cycles and 5 years warranty, 25 years life design
2. 4U/3U rack-mount chassis design is easy for parallel expansion and maintenance
3. Smart BMS system to optimize the performance

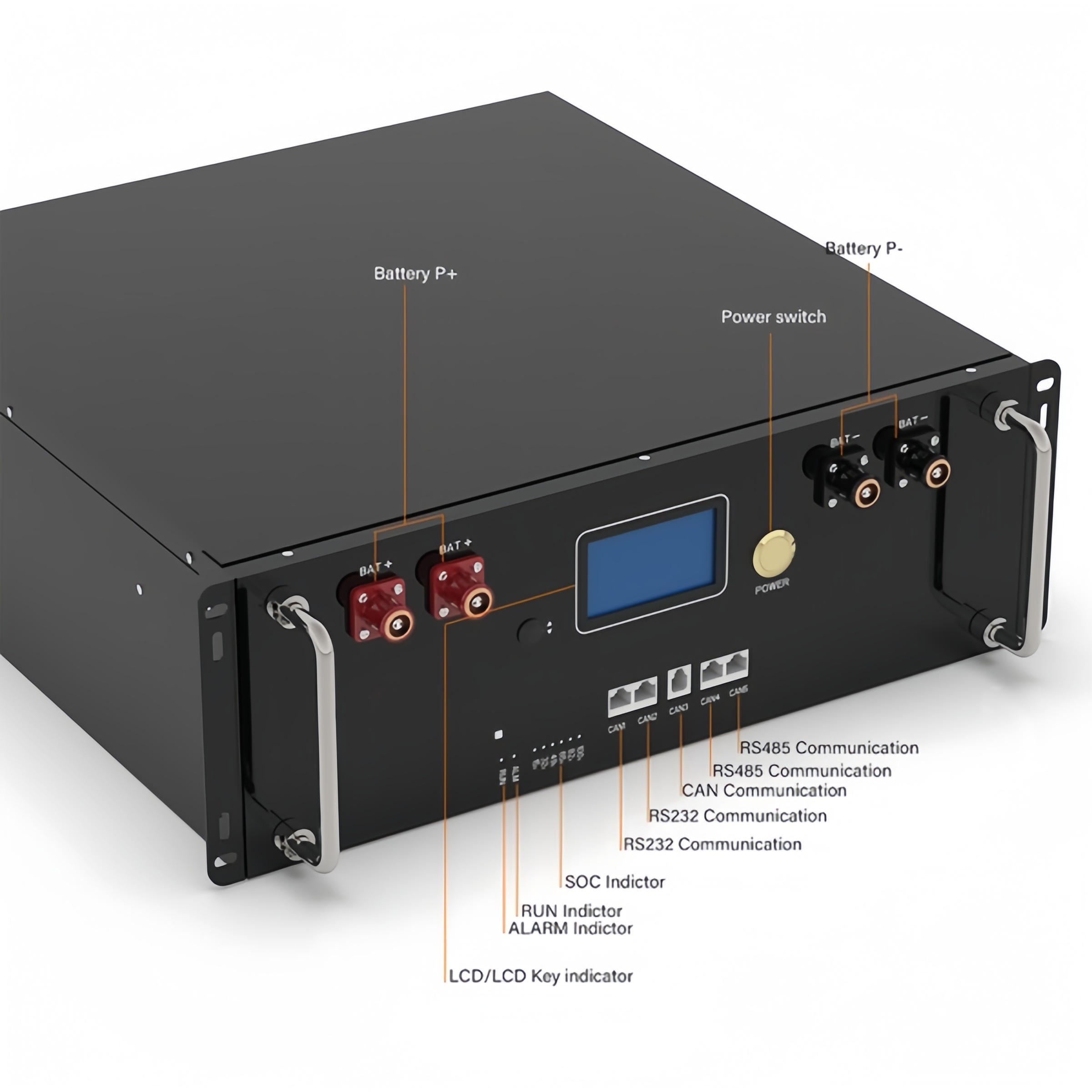

4.Communication:RS232/RS485/CAN/(Wifi/Bluetooth)optional, Compatible with different brand of solar inverter and chargers
5. All around protection: such as SOC/SOH/ Anti-theft function etc
6. High discharge rate currents, suitable for on-grid or off-grid solar system and other loads
7. Maximum of 16 battery packs can be connected in parallel
8. With front display to know effectively the status of the batteries
| Item | 5KW | 10KW | 15KW | ||
| Model | XDY5100 | XDY5200 | XDY5300 | ||
| Battery type | LiFePo4 Battery | ||||
| Nominal Voltage | 51.2V | ||||
| Nominal Capacity | 100Ah | 200Ah | 304Ah | ||
| Max.discharge current(A) | Continuous 100A | Continuous 100A | Continuous 100A | ||
| Max charge current | 100A | 100A | 100A | ||
| Cycle Life(DOD 80%) | ＞6000 Cycles | ＞6000 Cycles | ＞6000 Cycles | ||
| BMS | 16S LFP 100A | ||||
| Working temperature | -20℃～+60℃ | ||||
| Safety standard | UN38.3 MSDS | ||||
| Dimension(cm) | 56.6*43*17 | 62*52.4*28 | 75*52.4*29.7 | ||
| Weights | 45KG | 85KG | 85KG | ||
