Products Description

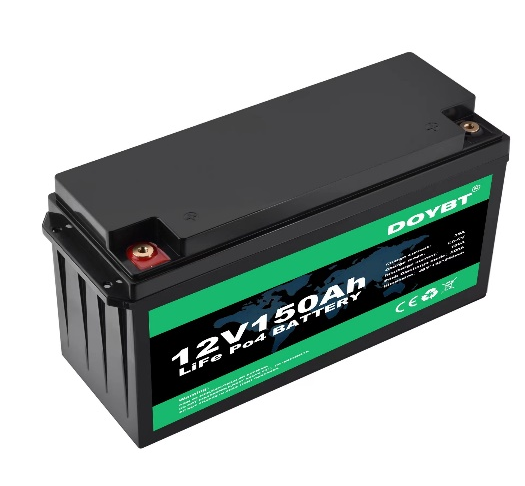

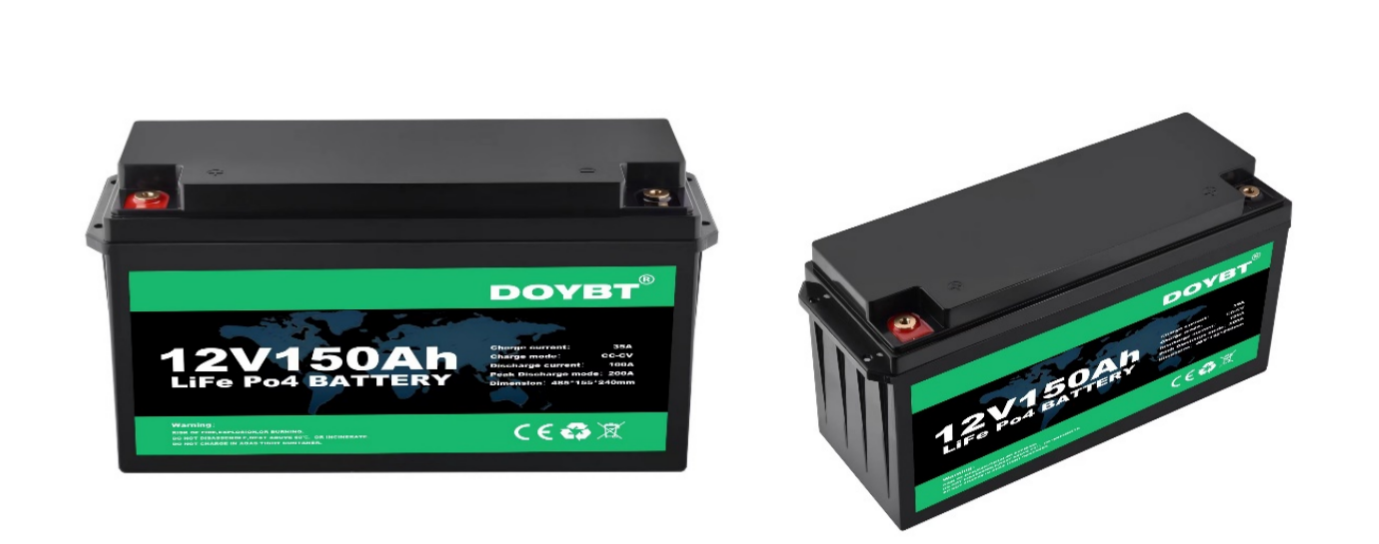

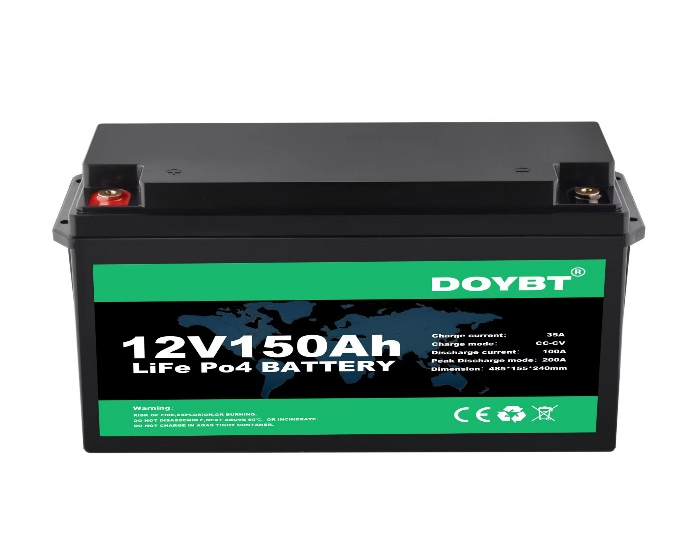

Product Specification for 12V 150Ah LiFePO4 Battery
General Information
· Product Name: 12V 150Ah Lithium Iron Phosphate Battery (LiFePO4)
· Manufacturer: Shenzhen Doyen Energy Co., Ltd.
· Address: Huali Industrial Building, Area 28, Baoan, Shenzhen, China
Key Specifications
Feature | Specification |
Nominal Capacity | 150Ah |
Power (Watt-Hour) | 1800Wh |
Charging Voltage | 14.2V - 14.6V |
Dimensions | 485 mm x 155 mm x 240 mm |
Charging Current | 35A |
Discharge Current | 100A |
Charge Mode | CC-CV (Constant Current - Constant Voltage) |
Peak Discharge Current | 200A |
Weight | 13.5 kg |
Operating Conditions
· Operating Temperature:
· Charging: 0°C to 45°C
· Discharging: -20°C to 60°C
Safety Warnings
· Please keep the battery away from fire or other heating sources and do not dispose of the battery in fire.
· Do not knock, beat, nail, or disassemble the battery.
· Avoid charging in a gas-tight container.
· For storage, maintain at least a 50% charge and recharge every three months.
Additional Features
· The LiFePO4 chemistry provides a longer cycle life with over 2000 cycles, making it ideal for applications requiring durability.
· The battery has a low self-discharge rate, ensuring readiness when needed.
· It is suitable for various applications including solar energy storage, RVs, and backup power systems.
Applications
This battery is versatile and can be used in:
· Solar energy systems
· Recreational vehicles (RVs)
· Marine applications
· Backup power systems
Conclusion
The 12V 150Ah LiFePO4 battery from Shenzhen Doyen Energy Co., Ltd. offers a reliable and efficient energy solution with robust safety features and a long operational lifespan. Its lightweight design and high performance make it suitable for a wide range of applications.
