Products Description

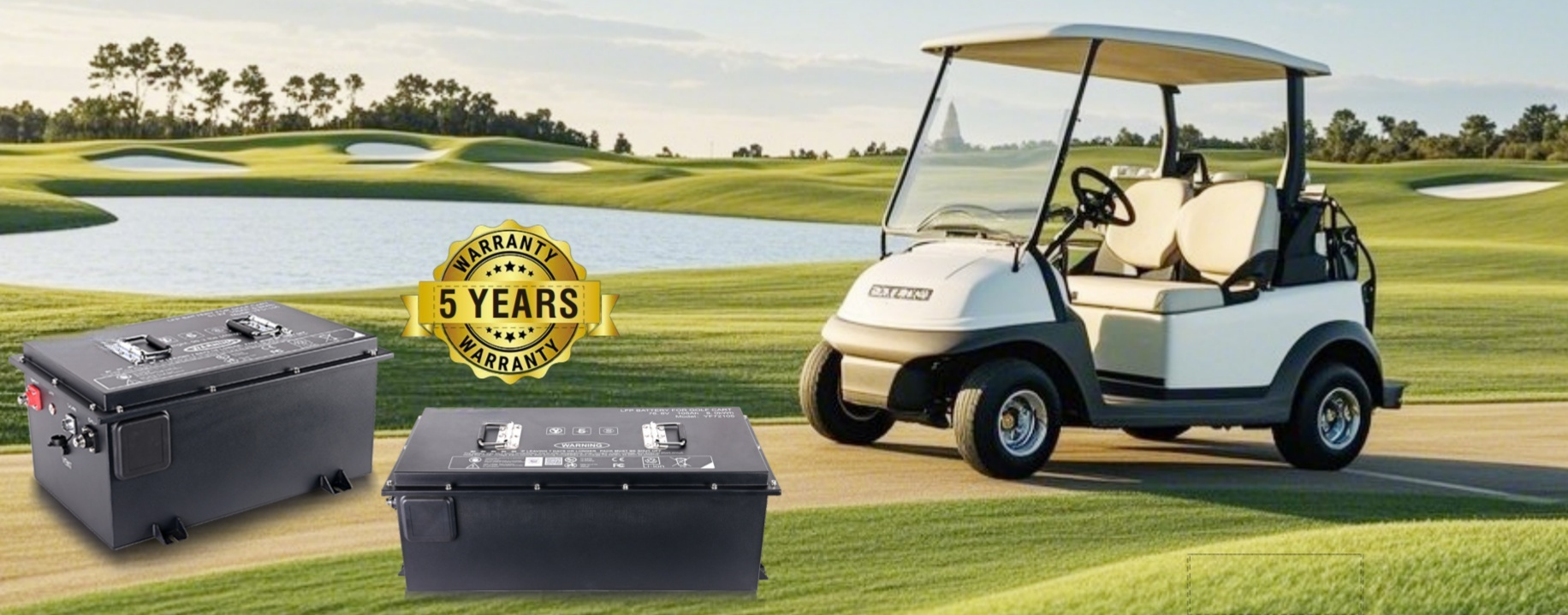

Golf Cart Battery 48V150AH LiFePO4 Batteries
48V LifePO4 Battery Pack built with the grade A high quality LiFePO4
cell, which provides 4000+ cycle life and a 10 year lifetime cycle use.
* Use 100% brand new grade A Lifepo4 cells
* Charge current: ≤150A
* Continuous discharge current: ≤150A
* Case Material: Metal Case
* Over 6000 cycles at 80% DoD
| Item | Specification |
| Model | 48V150AH |
| Battery type | LiFePO4 |
| Normal capacity | 156Ah |
| Min capacity | 150Ah |
| Battery pack type | 16S1P |
| Normal Voltage | 51.2V |
| Energy | 7680WH |
| Storage ambient temperature | -20℃ ~ +65℃ |
| Operating ambient temperature | charging： 0℃ ~ +55℃ discharging：-20℃ ~ +65℃ |
| Optimum Operating relative humidity | ≤95% |
| SOC working range | 0% ~ 100% |
| Maximum discharge sustainable current | 150A |
| Short-time Peak discharging current | 200A |
| PACK design cycle life | 4000 |
| Thermal management mode | natural heat dissipation |
| IP degree | battery box IP65 |
| Battery gross weight （KG） | 56 |
| Dimension | 480*360*200mm |
| PACK shell material | metal plate /Steel case |
| Short Circuit Protection | Auto recover or charge release |
| BMS Functions | Low voltage ,high voltae,over temp ,over current,short-circuit protection, passive balance function,etc. |
| Erickshaw，Eletric motor battery,Tricycle Battery,golf cart battery,we can provide OEM, ODM customized services | |
