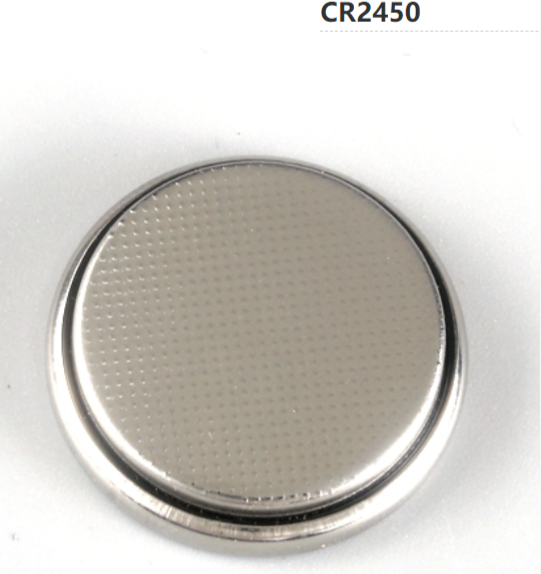

CR2450

General Information：Classification: "Lithium Coin" Chemical System: Li
Send Inquiry

Products Description

General Information：

Classification: "Lithium Coin"

Chemical System: Lithium / Manganese Dioxide (Li/MnO2 )

Designation: ANSI / NEDA-5029LC, IEC-CR2450

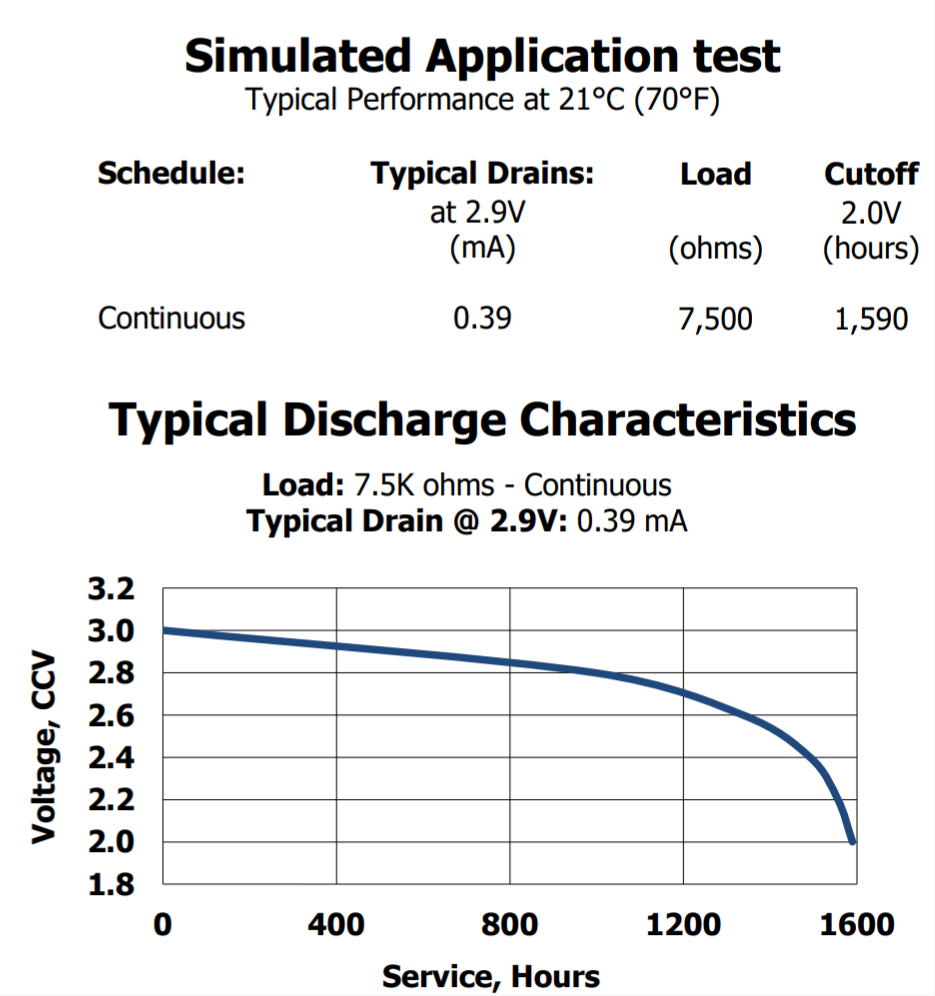

Nominal Voltage: 3.0 Volts Typical Capacity: 620 mAh (to 2.0 volts) (Rated at 7.5K ohms at 21°C)

Typical Weight: 6.8 grams (0.22 oz.)

Typical Volume: 2.4 cubic centimeters (0.14 cubic inch)

Max Rev Charge: 1 microampere

Energy Density: 183 milliwatt hr/g, 647 milliwatt hr/cc Typical Li Content: < 0.3g

Operating Temp: -30C to 60C Self

Discharge: ~1% / year
