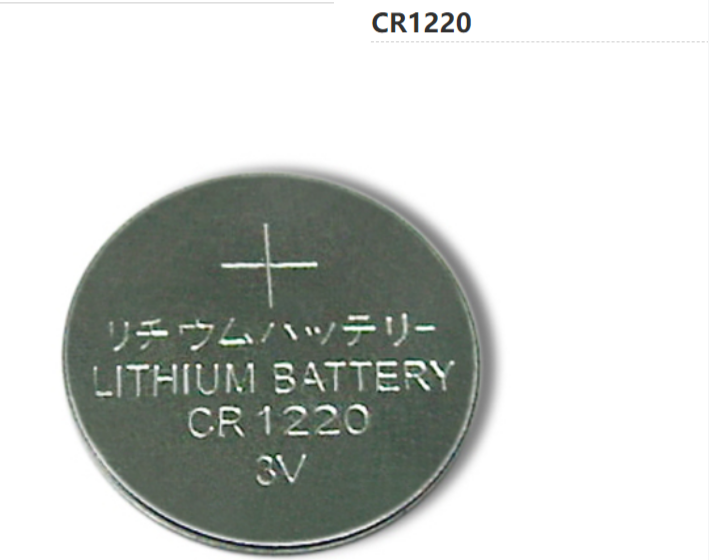

CR1220

Specifications：Classification: "Lithium Coin"Chemical System: Lithium
Send Inquiry

Products Description

Specifications：

Classification: "Lithium Coin" Chemical System: Lithium / Manganese Dioxide (Li/MnO2 )

Designation: ANSI-5012LC, IEC-CR1220

Nominal Voltage: 3.0 Volts

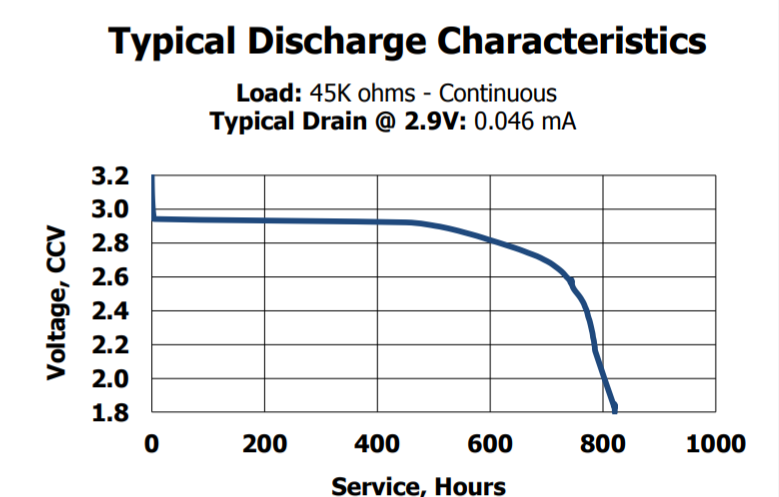

Typical Capacity: 37 mAh (to 2.0 volts) (Rated at 45K ohms at 21°C)

Typical Weight: 0.8 grams (0.03 oz.)

Typical Volume: 0.25 cubic centimeters (0.02 cubic inch)

Max Rev Charge: 1 microampere

Energy Density: 153 milliwatt hr/g, 464 milliwatt hr/cc

Typical Li Content: 0.006 grams (0.0002 oz.)

Operating Temp: -30C to 70C

Self Discharge: ~1% / year
