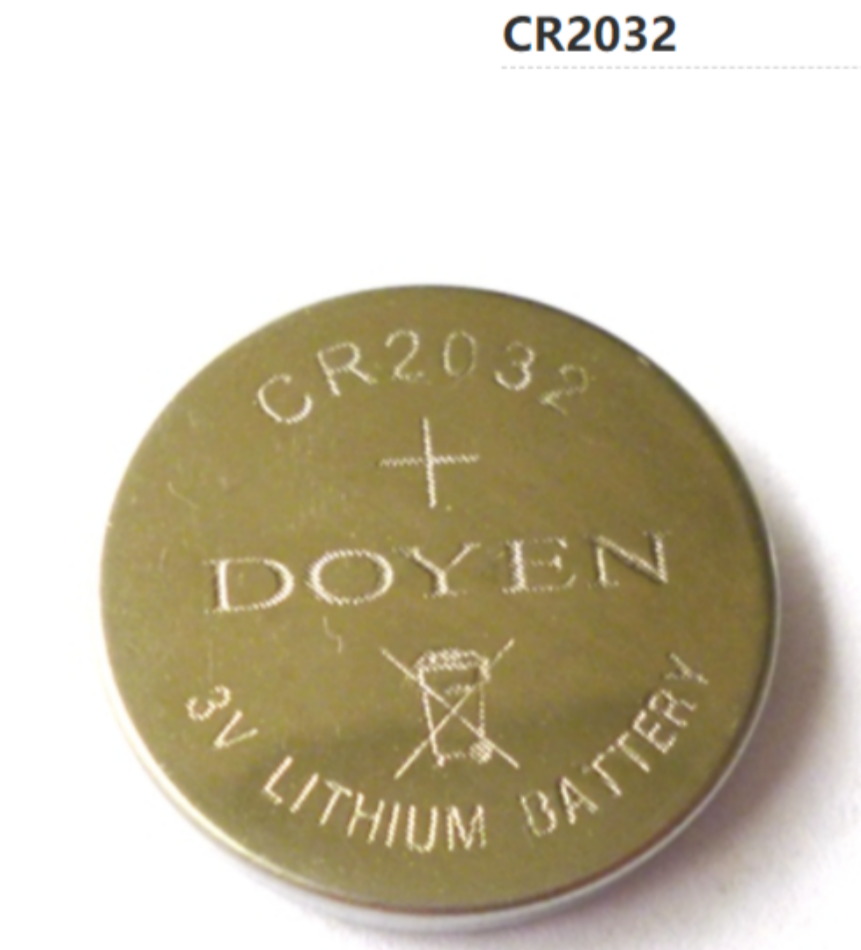

CR2032

Specifications:Classification: "Lithium Coin" Chemical System: Lithium
Send Inquiry

Products Description

Specifications:

Classification: "Lithium Coin"

Chemical System: Lithium / Manganese Dioxide (Li/MnO2 )

Designation: ANSI / NEDA-5004LC, IEC-CR2032

Nominal Voltage: 3.0 Volts

Typical Capacity: 235 mAh (to 2.0 volts) (Rated at 15K ohms at 21°C)

Typical Weight: 3.0 grams (0.10 oz.)

Typical Volume: 1.0 cubic centimeters (0.06 cubic inch)

Max Rev Charge: 1 microampere

Energy Density: 198 milliwatt hr/g, 653 milliwatt hr/cc

Typical Li Content: 0.109 grams (0.0038 oz.)

Operating Temp: -30C to 60C

Self Discharge: ~1% / year
