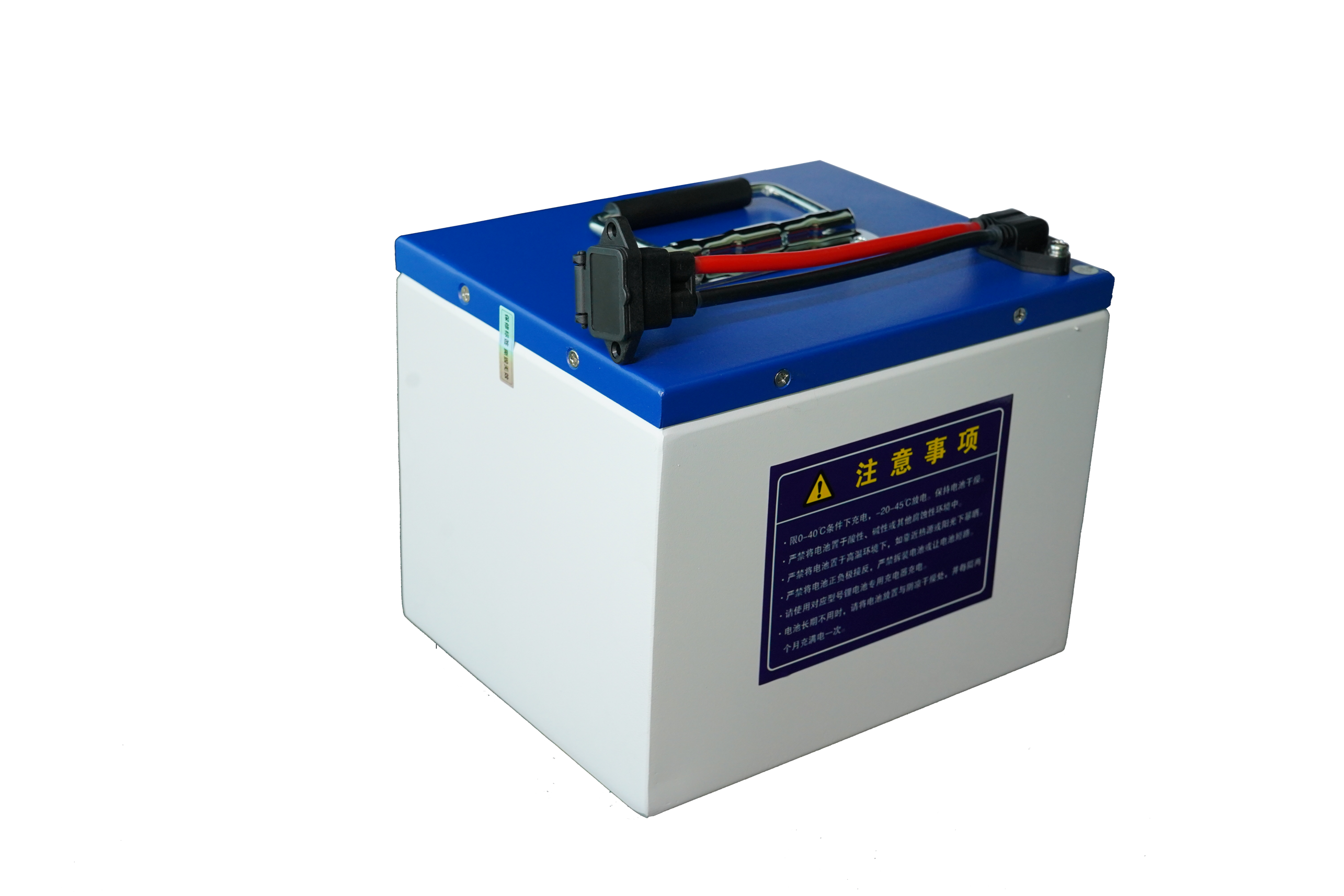

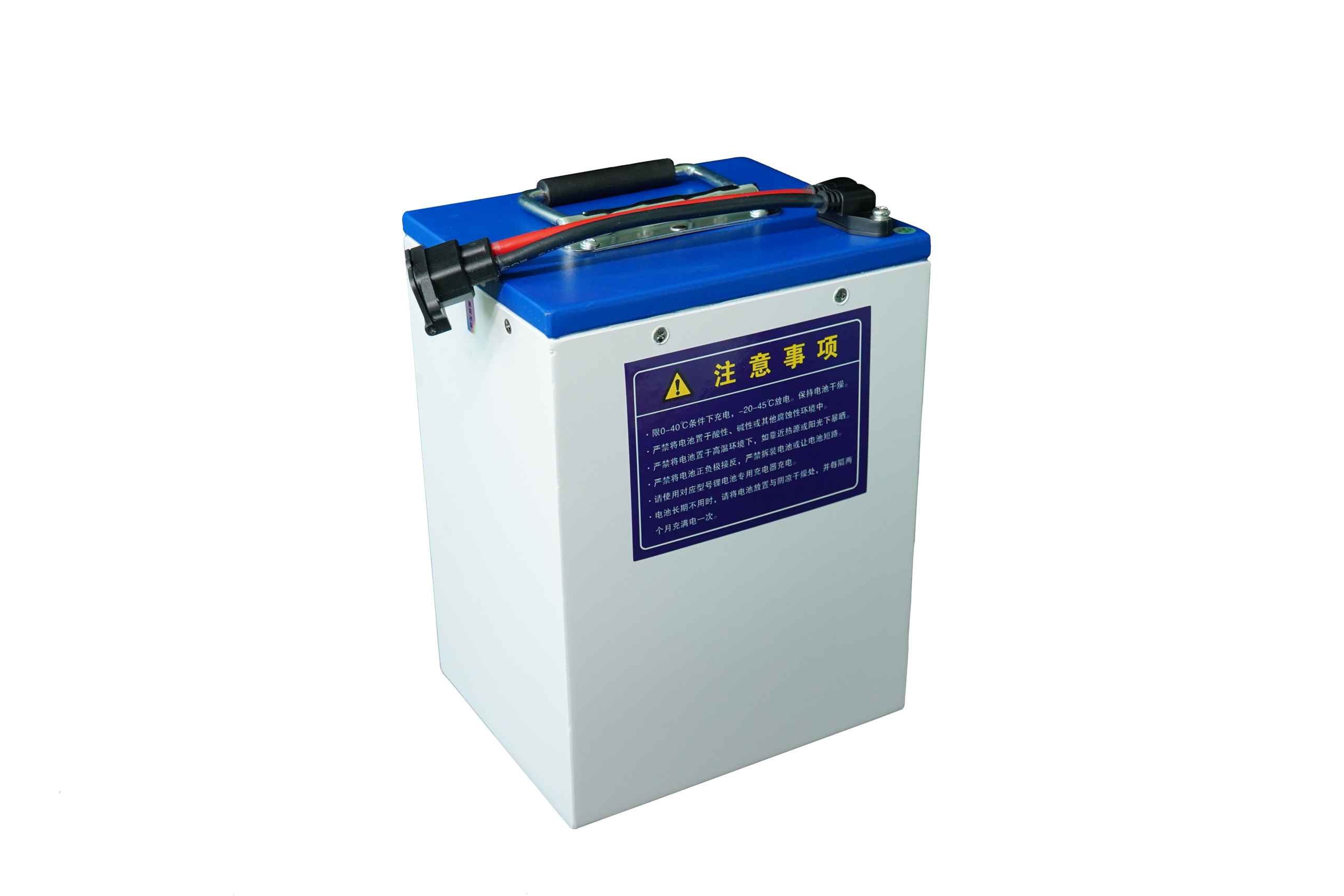

48V20AH lifePo4 battery-SHENZHEN DOYEN ENERGY CO. LTD

48V Lithium Lifepo4 battery

One Special 16(Lifepo4) cells PCB with balance function is installed with battery pack to protect battery from over charging, over discharging and over drain
Voltage : 48V
Cut-off voltage: 40V(Lifepo4)
Charging Current: <= 3/5Amps
Charging Voltage: 58.8V(Lifepo4)
Operation temperature:-20°C~60°C
Lifecycle: > 85% capacity after 1000 cycles.
Lifecycle of single cell: >85% capacity after 1000 cycles,> 70% capacity after 1200 cycles. (<1C discharge rate and <1C charge rate)

Name	Specification
Model	48V20AH
Battery type	LiFePO4
Normal capacity	20Ah
Min capacity	19Ah
Battery pack type	16S1P
Normal Voltage	51.2V
Energy	1024WH
Storage ambient temperature	-20℃ ~ +65℃
Operating ambient temperature	charging： 0℃ ~ +55℃ discharging：-20℃ ~ +65℃
Optimum Operating relative humidity	≤95%
SOC working range	0% ~ 100%
Maximum discharge sustainable current	30A
Short-time Peak discharging current	50A
Max sustain Charge Current	10A
PACK design cycle life	1000
Thermal management mode	natural heat dissipation
IP degree	battery box IP65
Battery gross weight （KG）	9.5
Dimension	175145225mm
PACK shell material	metal plate /Steel case
Short Circuit Protection	Auto recover or charge release
BMS Functions	Low voltage, high voltae,over temp ,over current,short-circuit protection, passive balance function,etc.
Erickshaw，Eletric motor battery,Ebike battery,Tricycle Battery, golf cart battery,we can provide OEM, ODM customized services

48V lifepo4 battery
