Products Description

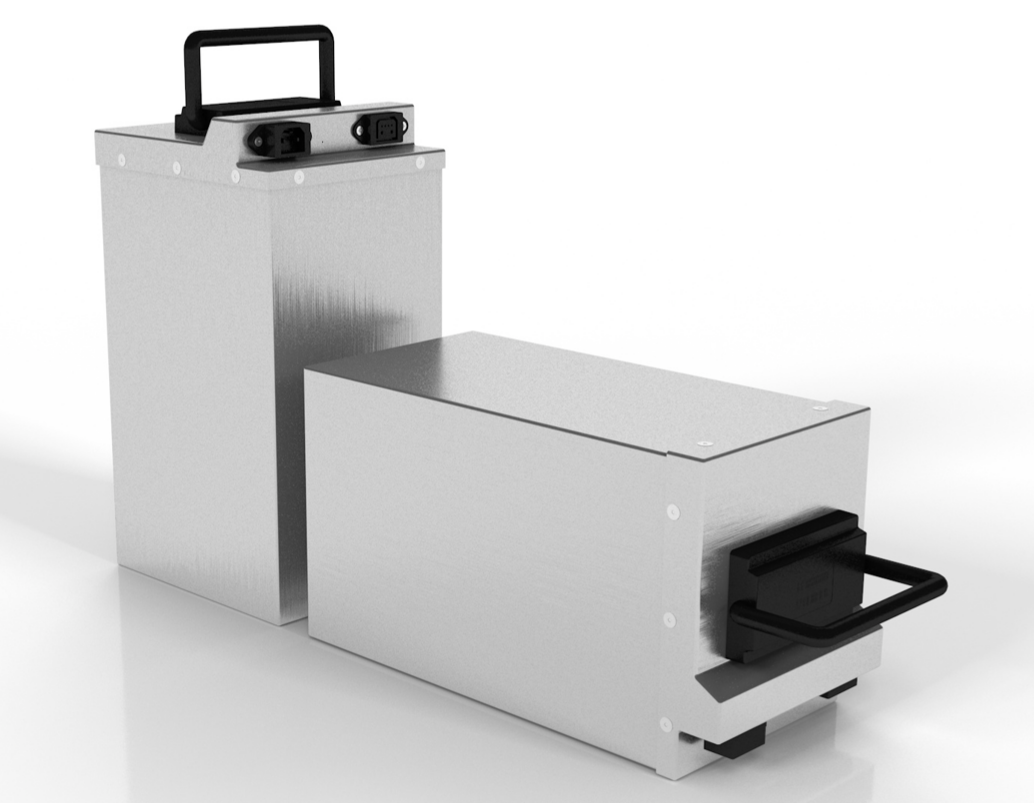

48V Lithium Lifepo4 battery
- One Special 16(Lifepo4) cells PCB with balance function is installed with battery pack to protect battery from over charging, over discharging and over drain
- Voltage : 48V
- Cut-off voltage: 40V(Lifepo4)
- Charging Current: <= 3/5Amps
- Charging Voltage: 58.8V(Lifepo4)
- Operation temperature:-20°C~60°C
- Lifecycle: > 85% capacity after 2000 cycles.
Lifecycle of single cell: >85% capacity after 2000 cycles,> 70% capacity after 3000 cycles. (<1C discharge rate and <1C charge rate)
| Item | Specification |
| Model | 48V50AH |
| Battery type | LiFePO4 |
| Normal capacity | 50Ah |
| Min capacity | 48Ah |
| Battery pack type | 16S2P |
| Normal Voltage | 51.2V |
| Energy | 2560WH |
| Storage ambient temperature | -20℃ ~ +65℃ |
| Operating ambient temperature | charging： 0℃ ~ +55℃ discharging：-20℃ ~ +65℃ |
| Optimum Operating relative humidity | ≤95% |
| SOC working range | 0% ~ 100% |
| Maximum discharge sustainable current | 50A |
| Short-time Peak discharging current | 80A |
| PACK design cycle life | 2000 |
| Thermal management mode | natural heat dissipation |
| IP degree | battery box IP65 |
| Battery gross weight （KG） | 20.5 |
| Dimension | 220*170*300mm |
| PACK shell material | metal plate /Steel case |
| Short Circuit Protection | Auto recover or charge release |
| BMS Functions | Low voltage ,high voltae,over temp ,over current,short-circuit protection, passive balance function,etc. |
| Erickshaw，Eletric motor battery,Ebike battery,Tricycle Battery,golf cart battery,we can provide OEM, ODM customized services | |
